INCOSTEEL produces a wide range of steel pipes for multiple applications.

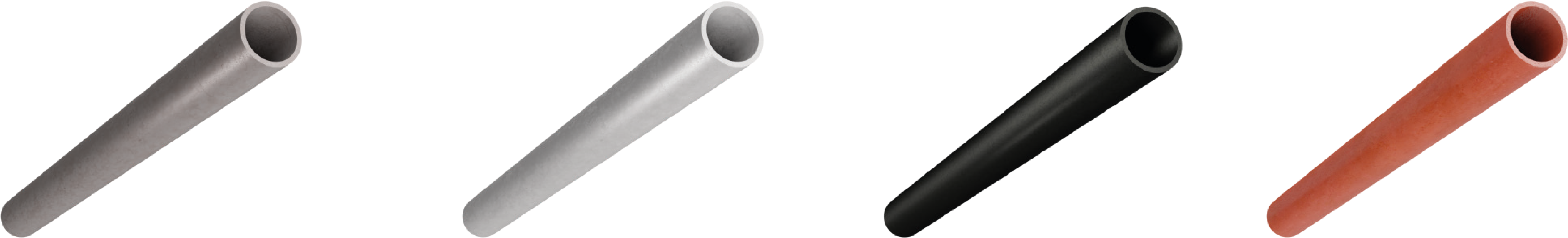

Steel Pipes from ½-4’’

︎︎︎‭ ‬Longitudinally welded pipes by electric resistance welding‭ (‬ERW‭)‬
︎︎︎‭ ‬Diameters ranging from 1/2‭'' (‬21.3mm‭) ‬to 4‭'' (‬114.3‭ ‬mm‭)‬

Sectors

︎︎︎‭ ‬Galvanized steel pipes for water transmission‭ ‬‬according to Egyptian Standard ES 350

︎︎︎‭ ‬Steel pipes for natural gas transmission ‬according to British Standard BS EN 10255

︎︎︎ ‬Steel pipes for firefighting and air conditioning networks according to American Standard‭ (‬ASTM A53‭)‬

︎︎︎ ‬Galvanized steel pipes for greenhouses fabrication‭ according to British Standard BS EN 10219

︎︎︎ ‬Steel pipes for general industrial purposes according to British Standard BS EN 10219

wide range of square & rectangular pipes

︎︎︎ ‬Longitudinally welded pipes by electric resistance welding‭ (‬ERW‭)‬
︎︎︎ ‬Sizes‭: ‬18x18‭ ‬mm up to 100x100‭ ‬mm‭ ‬
︎︎︎ ‬Wall thickness‭: ‬1.2mm up to 5mm
︎︎︎ ‬Length‭: ‬4m up to 9m

Sectors

︎︎︎ ‬Steel pipes for the automotive industry
︎︎︎ ‬Steel pipes for the furniture industry
︎︎︎ ‬Steel pipes for industrial purposes and steel structures





︎︎︎download product specs

BS EN 10219 ASTM A53 HOLLOW SECTIONS
SQUARED - BS EN 10219 RECTANGULAR- BS EN 10219

INCOSTEEL manufactures a‭ ‬wide range of steel poles for industrial usage‭. ‬These include tapered and stepped lighting poles as well as electric power transmission tension poles‭. ‬The poles are offered‭ ‬black‭,‬‭ ‬‭ ‬hot-dip‭ ‬galvanized or‭ ‬with‭ ‬‭ ‬an‭ ‬‭ ‬anti-rust‭ ‬‭ ‬primer‭ ‬‭ ‬paint‭ ‬depending on customer requirements.

round cross sectional poles

︎︎︎ Tapered poles with length from 3m up to 16m thickness from 3mm up to 6mm

︎︎︎ Stepped poles
Manufacturing is according to the specifications of the Egyptian Electricity Holding Company

︎︎︎ Stepped poles low voltage
       • Stepped poles 150‭/ ‬8m‭ (‬6‭"‬‭/‬4‭"‬‭/‬3‭"‬‭) ‬
       • Stepped poles 350‭/ ‬8m‭ (‬8‭"‬‭/‬6‭"‬‭/‬4‭"‬‭) ‬
       • Stepped poles 350/10m‭ (‬8‭"‬‭/‬6‭"‬‭/‬4‭"‬‭) ‬
       • Stepped poles 150‭/ ‬10m‭ (‬6‭"‬‭/‬4‭"‬‭/‬3‭"‬‭)
       • Stepped poles 500‭/ ‬8m‭ (‬10‭"‬‭/‬8‭"‬‭/‬6‭"‬‭)‬

︎︎︎ Stepped poles medium voltage
        • Stepped poles (10"/8"/6") 12m
        • Stepped poles (10"/8"/6") 12m

︎︎︎ ‬Hexagonal and octagonal poles with length‭ ‬from 3m up to 16‭m and thickness from 3mm up to 6mm

︎︎︎ ‬High mast lighting poles with length‭ ‬‬from 15‭m up to 30‭m and thickness from 4‭mm up to 6‭mm

Telecommunication Cell Towers

INCOSTEEL manufactures all types of telecommunication towers‭. ‬The length varies from 6m up to 80m according to customer‭ ‬drawings and technical specifications‭. ‬

Structural TOWERS for low voltage EDMS 09-400

INCOSTEEL manufactures multiple structural poles and different tower types according to the specifications of the Egyptian Electricity Holding Company as shown below‭. ‬They can be manufactured according to customer requirements‭ (‬black‭, ‬painted‭ & ‬hot-dip galvanized‭). ‬

︎︎︎ ‬Structural Pole‭  ‬Model 9/12m
︎︎︎ ‬Structural Tower Model 10/12m
︎︎︎ ‬Structural Tower Model 11/12m‭ ‬
︎︎︎ ‬Structural Pole Model 12/15m
︎︎︎ ‬Structural Tower Model 13/21.25m

download product specs

 POLES

INCOSTEEL offers galvanization services‭ ‬for our product range as well as customer products‭.‬

The hot dip galvanization process is performed according to the German Standard DIN 50976‭ ‬and the American Standard ASTM A123‭. ‬The products are chemically treated‭, ‬dried and hot-dip galvanized‭. ‬Small components such as clamps‭, ‬bolts‭, ‬nuts and pipe fittings‭ ‬can also be galvanized for our customers using a centrifugal machine‭‬

STANDARDS

︎︎︎ American Standard ASTM A53 Grade A and Grade B
︎︎︎ Egyptian Standard ES 350
︎︎︎ International Standards ISO 65, ISO 7/1
︎︎︎ British Standard BS EN 10219
︎︎︎ British Standard BS EN 10255
︎︎︎ British Standard BS 1387, BS 21
︎︎︎ German Standards DIN 2439, DIN 2440,     DIN 2441
︎︎︎ American Standard ASTM A123

TESTING

According to the American Standard (ASTM A53) schedule 40:
︎︎︎ Visual and Dimensional Inspection
︎︎︎ Flattening Test
︎︎︎ Chemical Analysis
︎︎︎ Offline Eddy Current Test
︎︎︎ Bending Test
︎︎︎ Tensile, Yield and Elongation Test
︎︎︎ Grooving Test
︎︎︎ Hydrostatic Test
︎︎︎ Mill Certificate issued upon request
